LED bar 100cm 594W

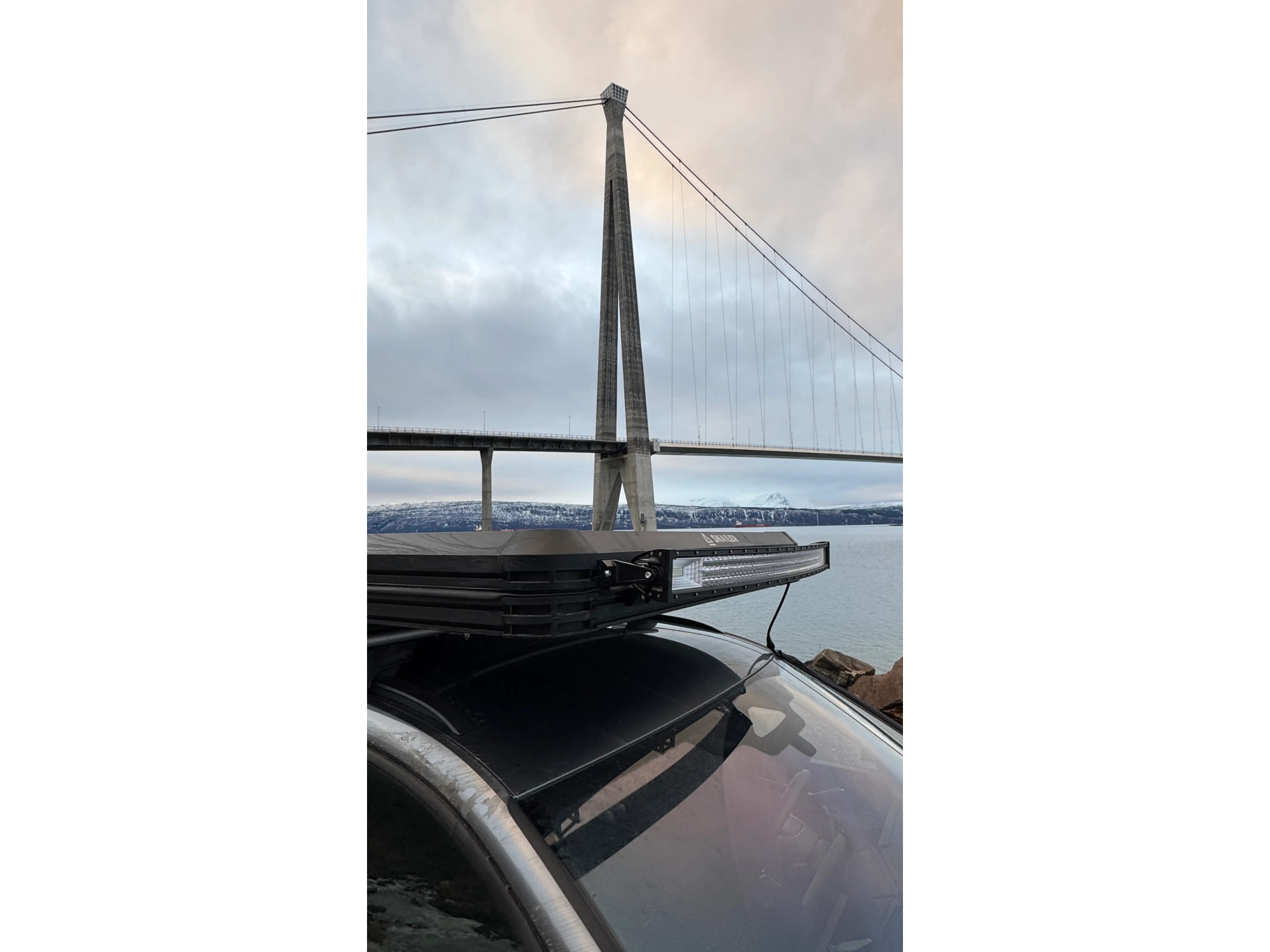

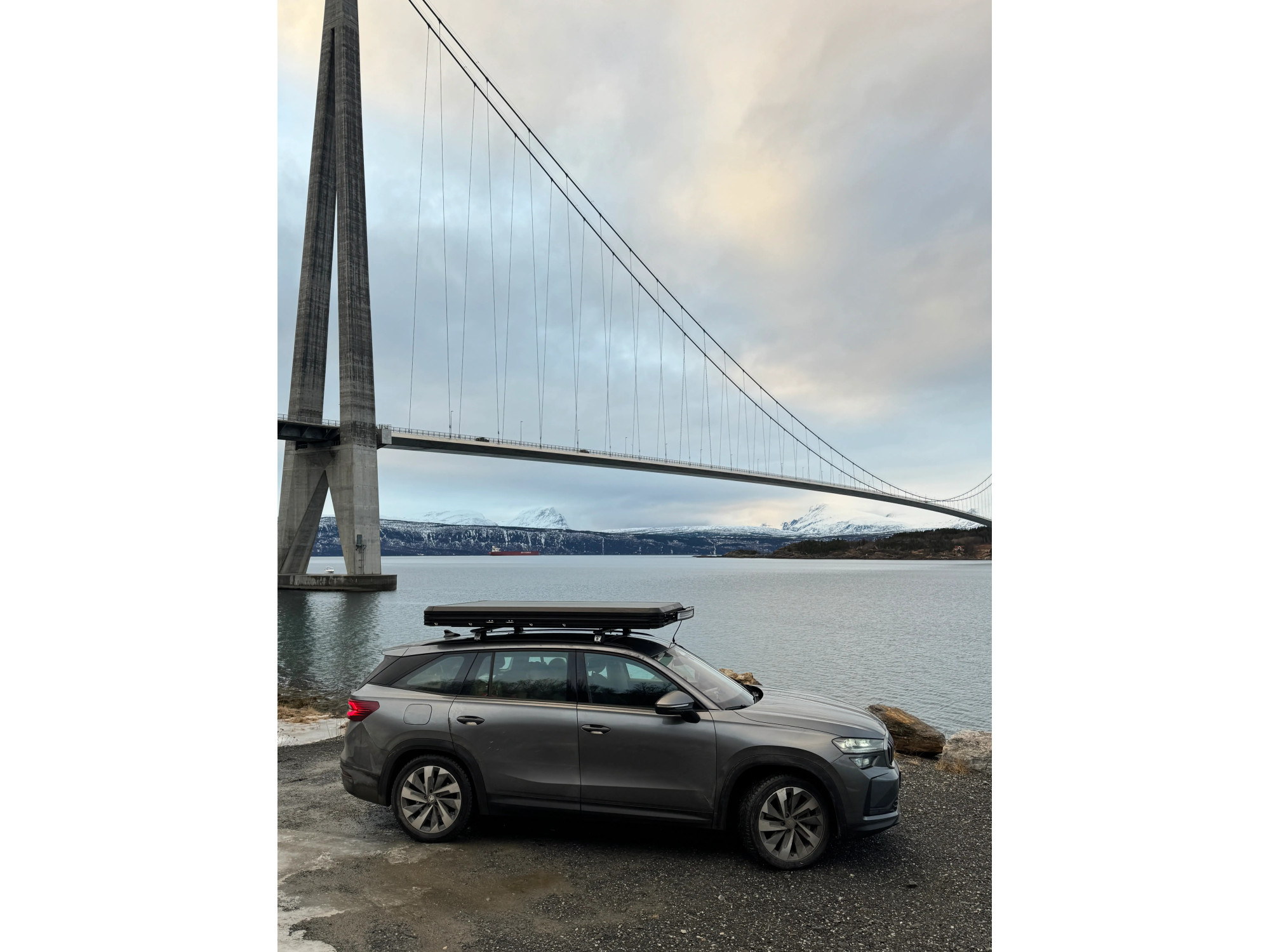

The LED bar can be mounted using T-slots on the Alduo rooftop tent. Installation photos are available in the product image gallery.
Electrical connection must be carried out by a qualified auto electrician. The package does not include a wiring harness, relay, or switch.

Power cable routing must be designed individually for each vehicle. There is no universal wiring solution or installation manual due to vehicle-specific differences.

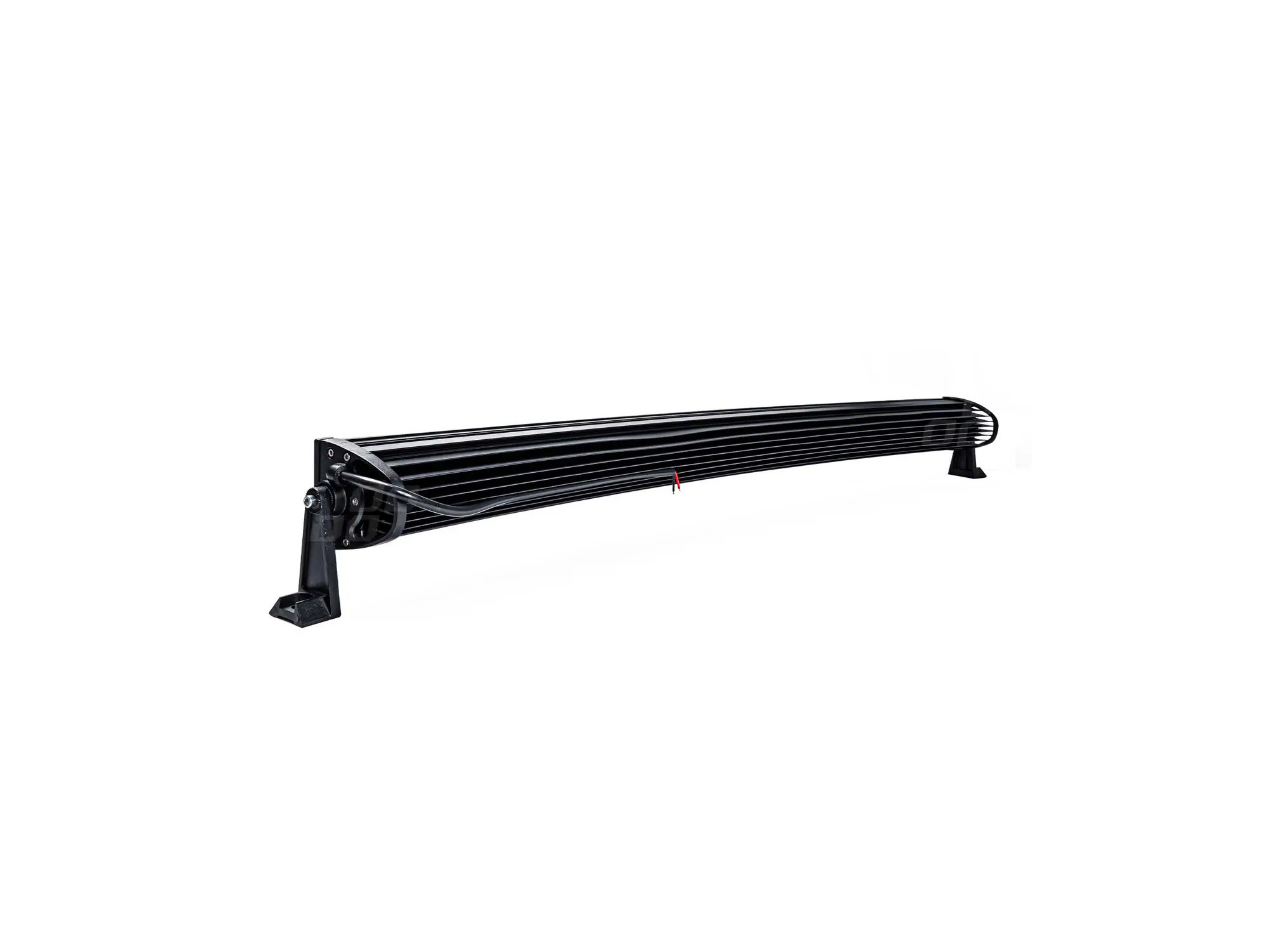

Curved LED Work Light Bar 100 cm AWL46
The AWL46 is a high-performance curved LED work light bar designed for maximum illumination in demanding conditions. With a powerful output of 594 W and an impressive 47,520 lumens, it provides excellent visibility for off-road driving.

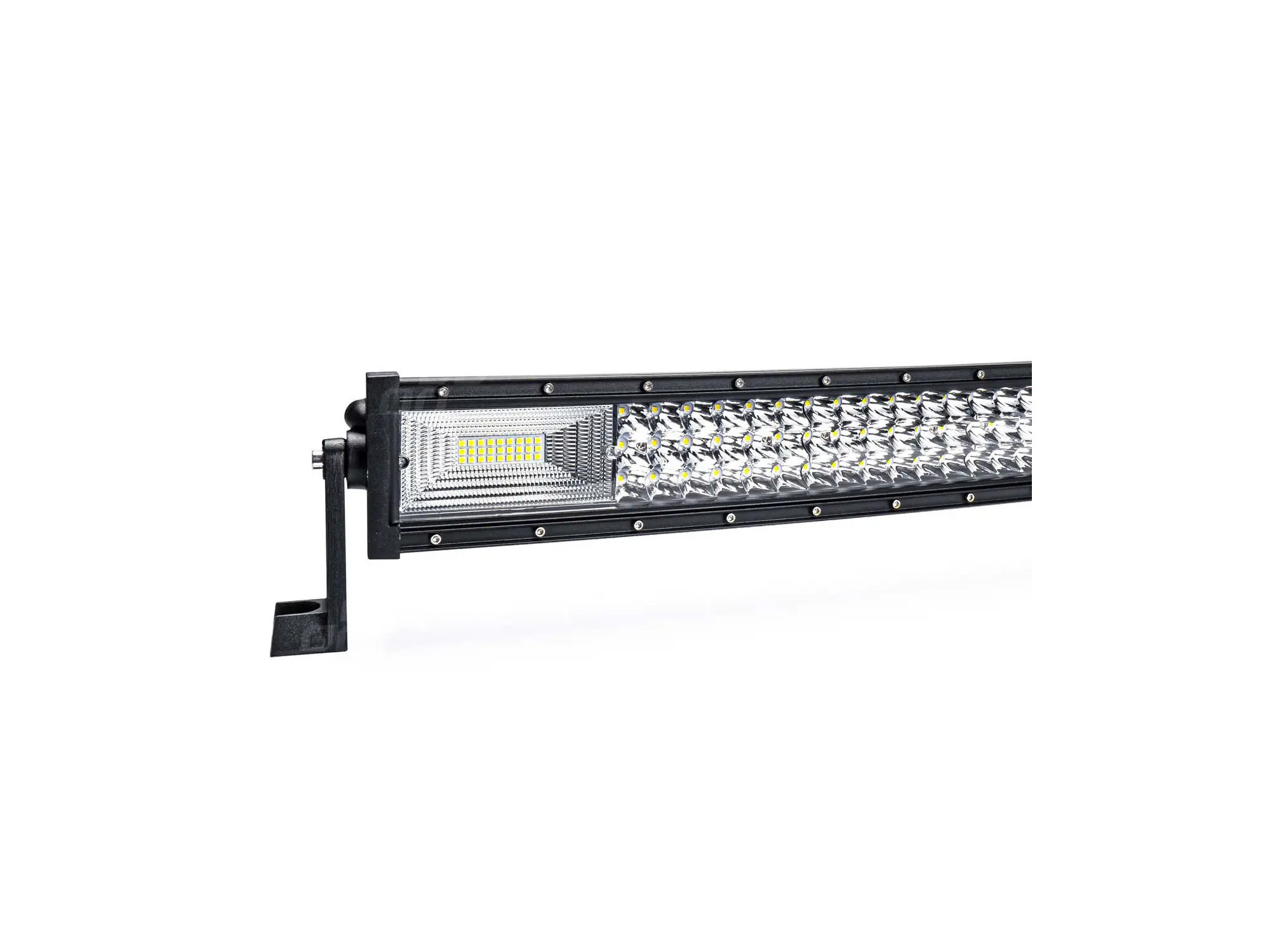

The COMBO beam pattern combines wide flood lighting with a focused spot beam, ensuring both close-range coverage and long-distance visibility. The curved design improves light distribution across a wider field of view.

The housing is made of durable aluminum. Thanks to its IP67 rating, the light bar is fully protected against dust and water, making it suitable for harsh weather and outdoor environments.

Installation Information

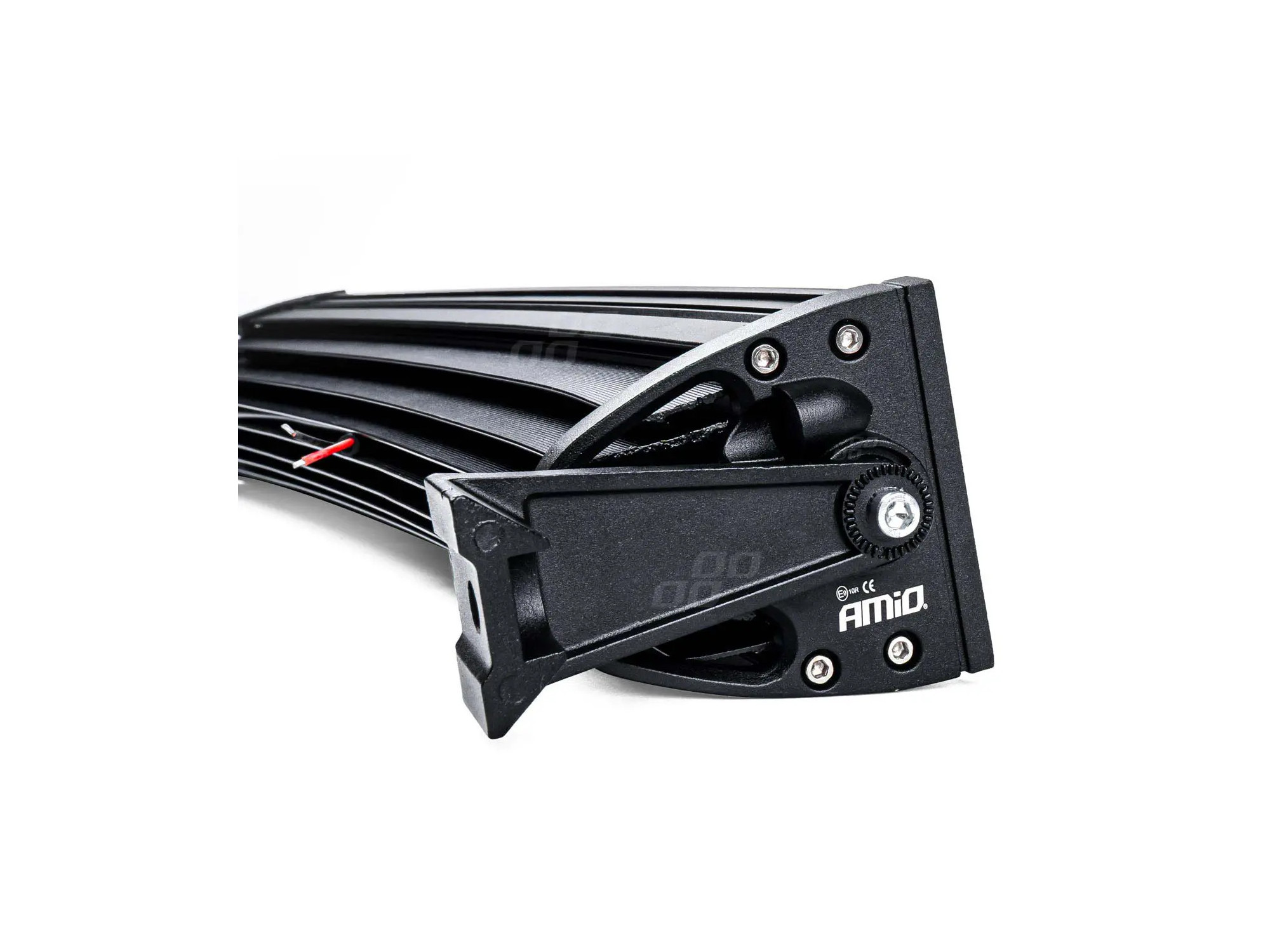

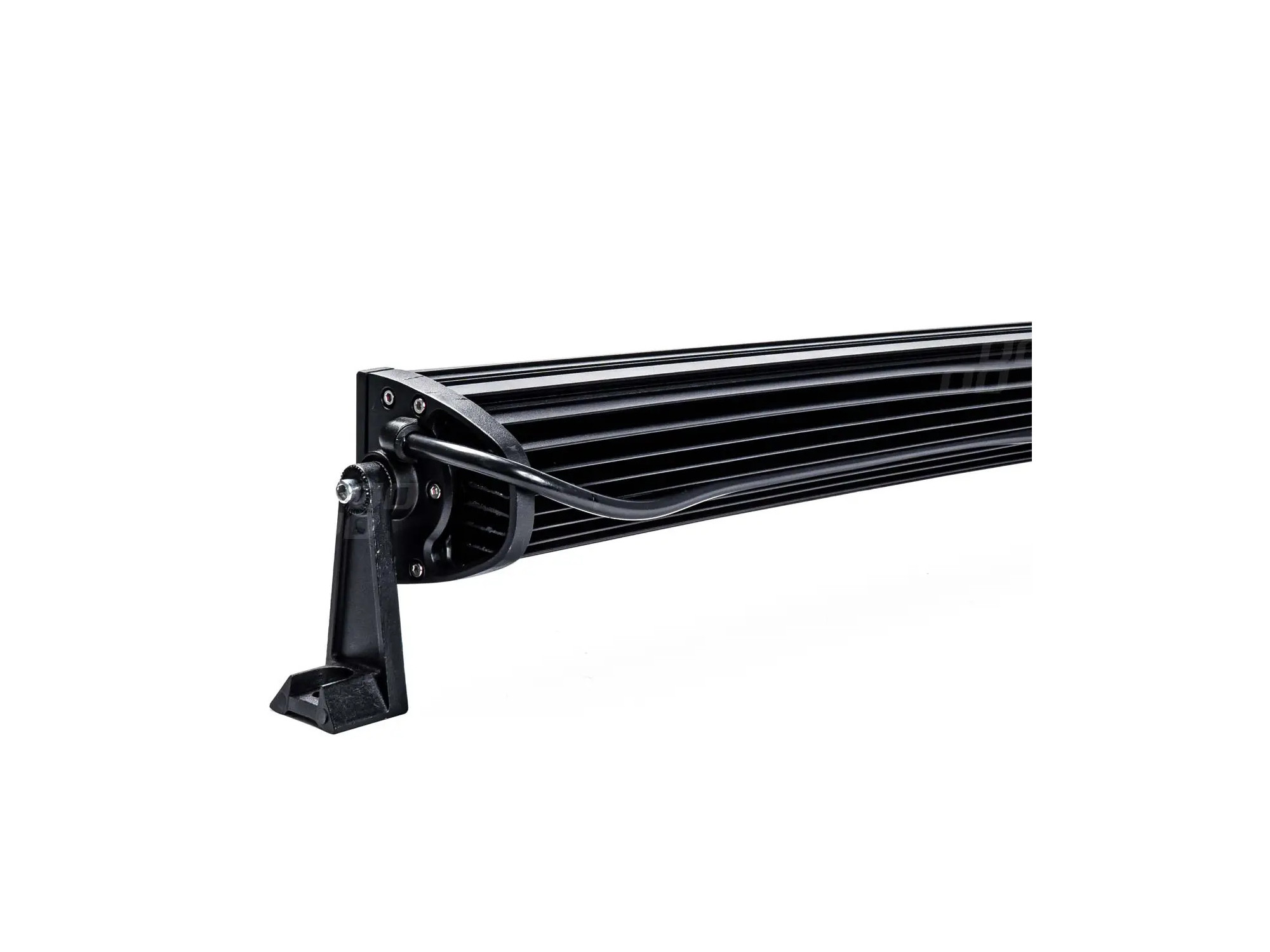

The light bar is supplied with mounting brackets for fixed installation.
Wiring harness, switch, and relay are not included and must be purchased separately.

For safe operation, professional installation is recommended.
Due to the high power consumption, proper wiring, fuse protection, and a relay are required.

Key Features
Power: 594 W
Light output: 47,520 lm
Voltage: 9–36 V DC (12 V / 24 V systems)
Color temperature: 6500 K (cool white)
Beam pattern: COMBO (spot + flood)
Protection class: IP67 (water & dust resistant)
Housing: Aluminum
Operating temperature: -30 °C to +50 °C
Dimensions: 1000 × 80 × 84 mm
Weight: approx. 3 kg
Homologation: E9, ECE R10 (EMC)

IMPORTANT NOTICE
This light bar is designed as a work / off-road light and is NOT approved for use on public roads. It may only be used outside public traffic areas (off-road, private property, construction sites, work vehicles, etc.).
The E9 R10 homologation applies to electromagnetic compatibility (EMC) only and does not authorize road use as a driving light.
